Kidde Graviner MK5 Oil Mist Detector

The Graviner MK5 has been protecting diesel engines since the first oil mist hazard was identified over 50 years ago. It monitors the density of oil mist in the crankcase and triggers an alarm when density exceeds a preset threshold. The MK5 is now obsolete — limited spare parts are available. Upgrade to MK7 is recommended.

⚠

The Graviner MK5 is now obsolete. Only limited surplus spare parts remain available. We strongly recommend upgrading to the Kidde Graviner MK7 for continued engine protection and classification society compliance.

The Graviner MK5 monitors oil mist density in diesel engine crankcases and activates an alarm when the density exceeds a preset threshold, triggering engine stop or slowdown. It has been used by hundreds of ships over several decades.

As authorized Kidde Graviner OMD distributors, our Technical Department has the capability and experience to rebuild and repair spare parts. Our workshop is equipped with all necessary instruments to carry out tests on complete oil mist detectors and individual spare parts.

⚠️

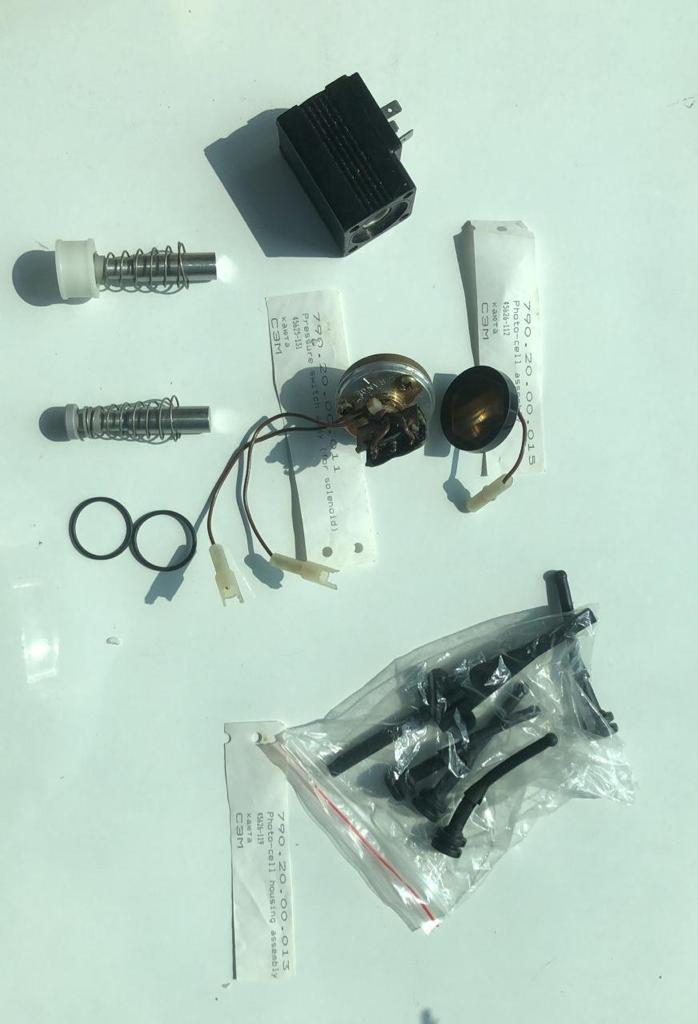

Key MK5 Components Available: GRAVINER MK5 PRESSURE SWITCH (45625-131) and GRAVINER MK5 PHOTO-CELL ASSEMBLY (45626-112) — contact us for availability and pricing.

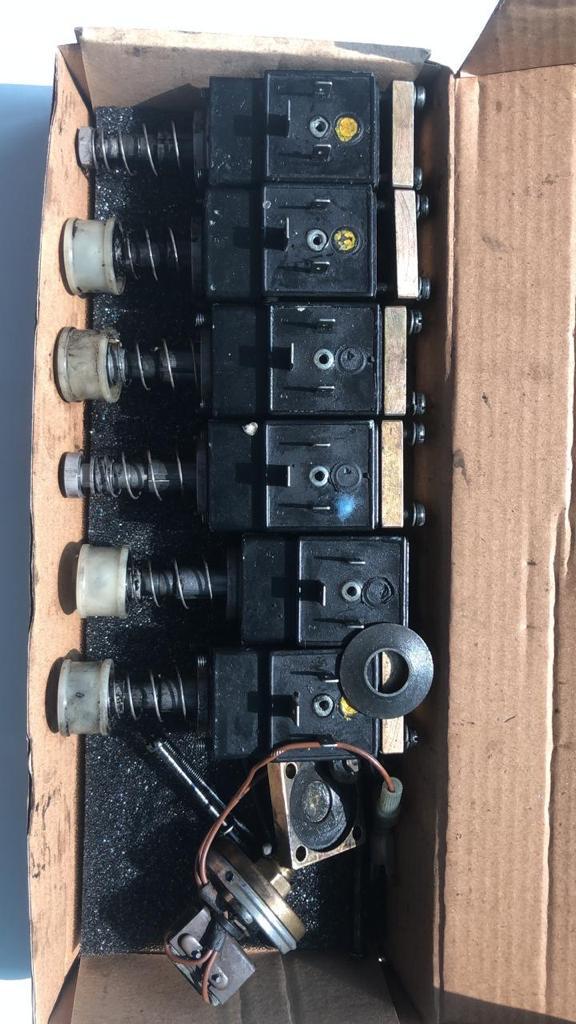

MK5 Pressure Switch — Surplus Stock

Graviner MK5 Pressure Switch 45625-131 surplus stock 1

Graviner MK5 Pressure Switch surplus stock 3

Graviner MK5 Pressure Switch surplus stock 4

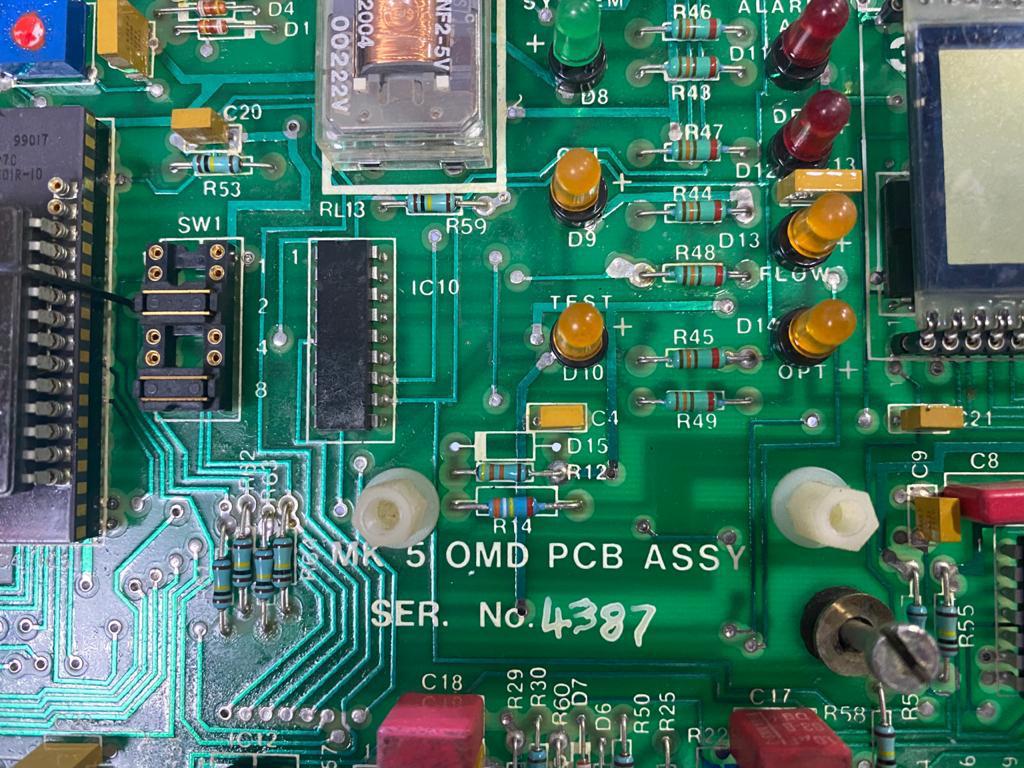

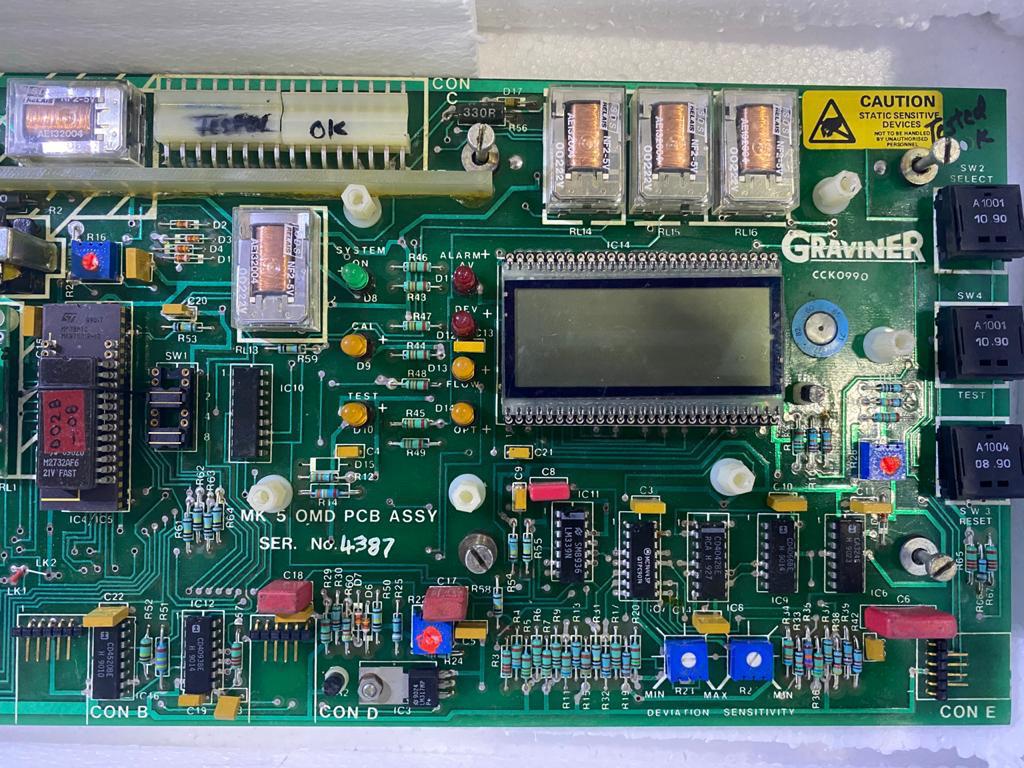

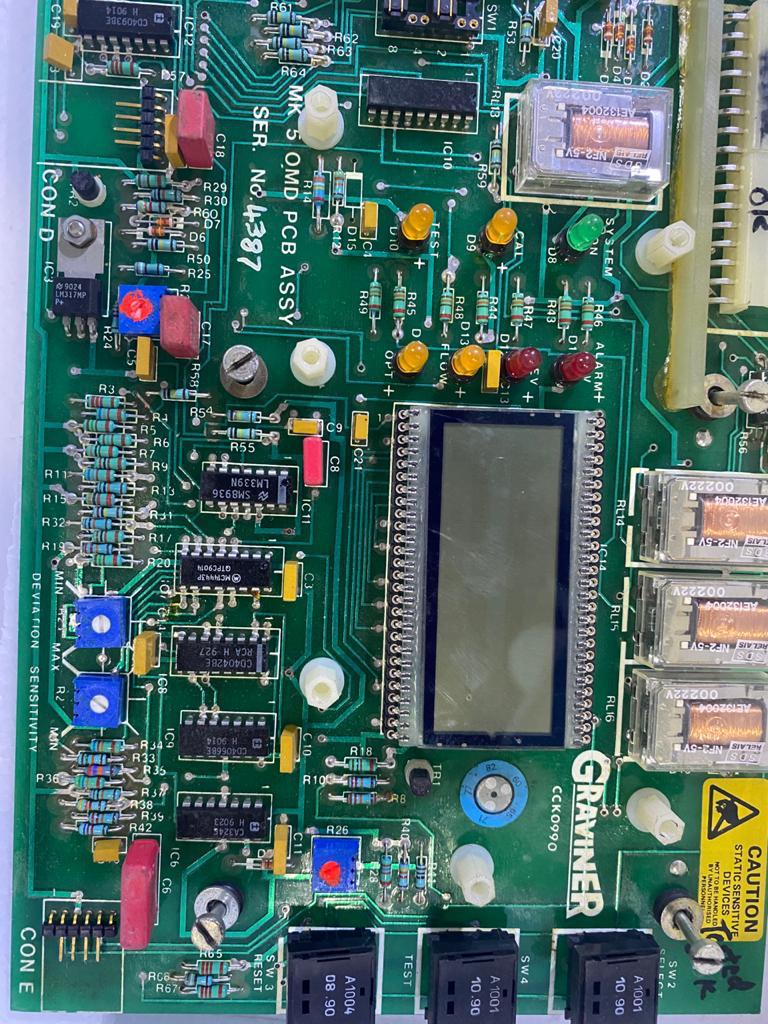

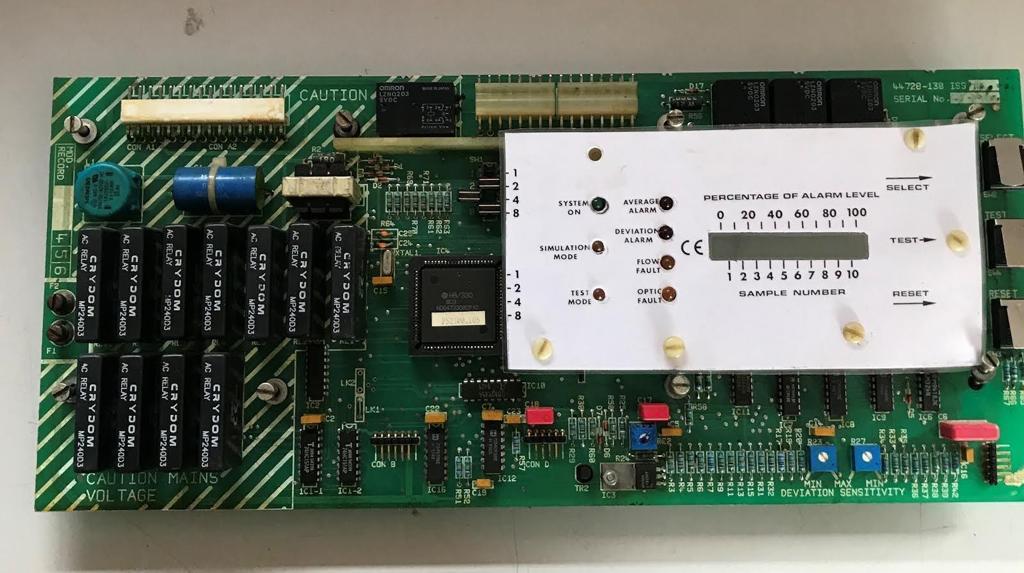

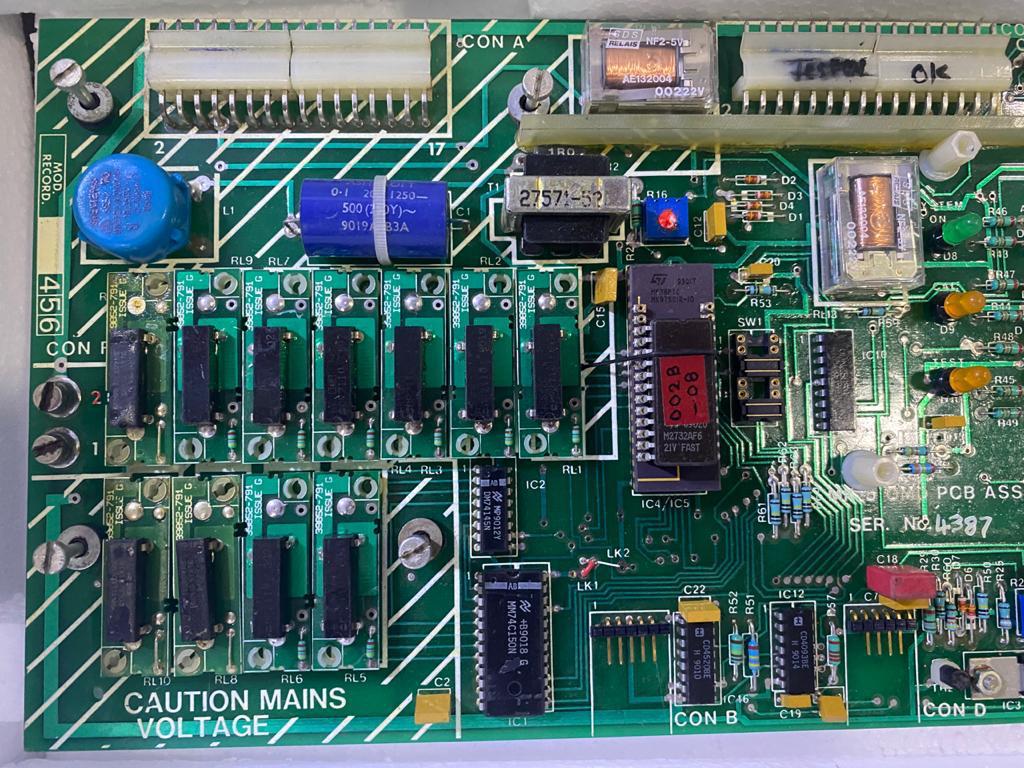

MK5 Main Controller PCB — Surplus Stocks

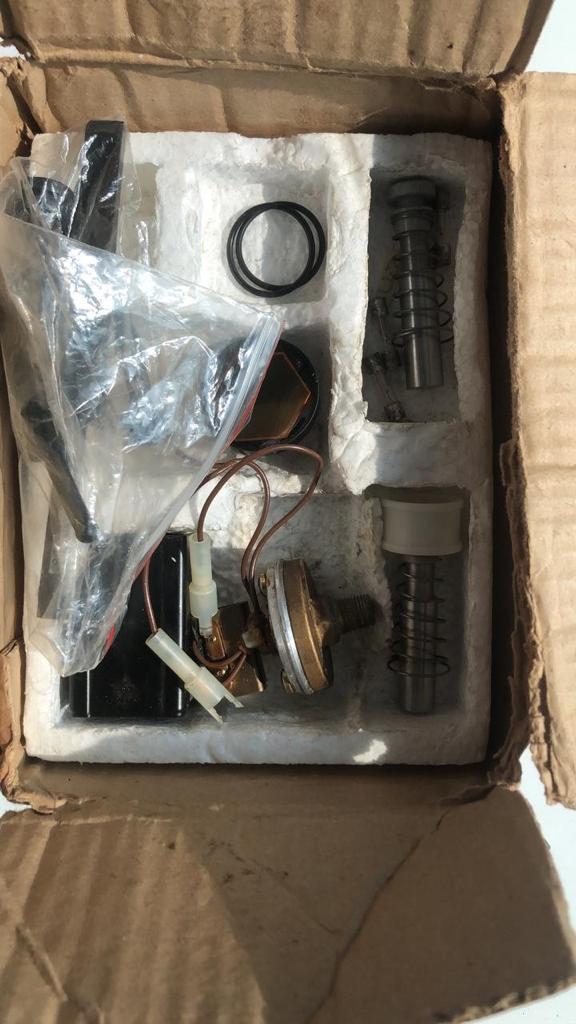

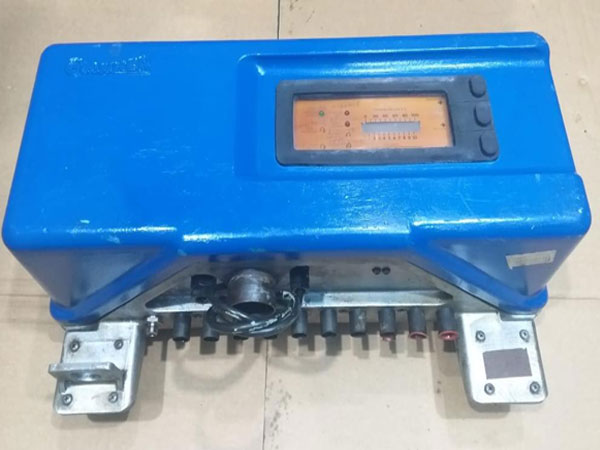

MK5 Refurbished Unit Stocks

MK5 Surplus New Stocks

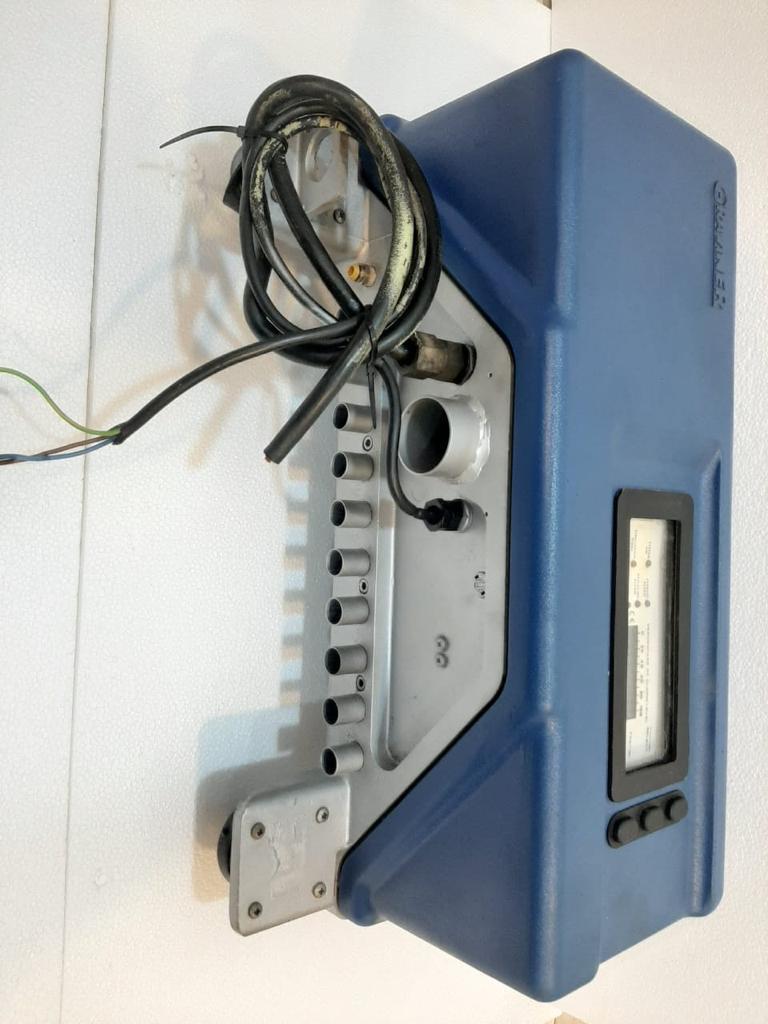

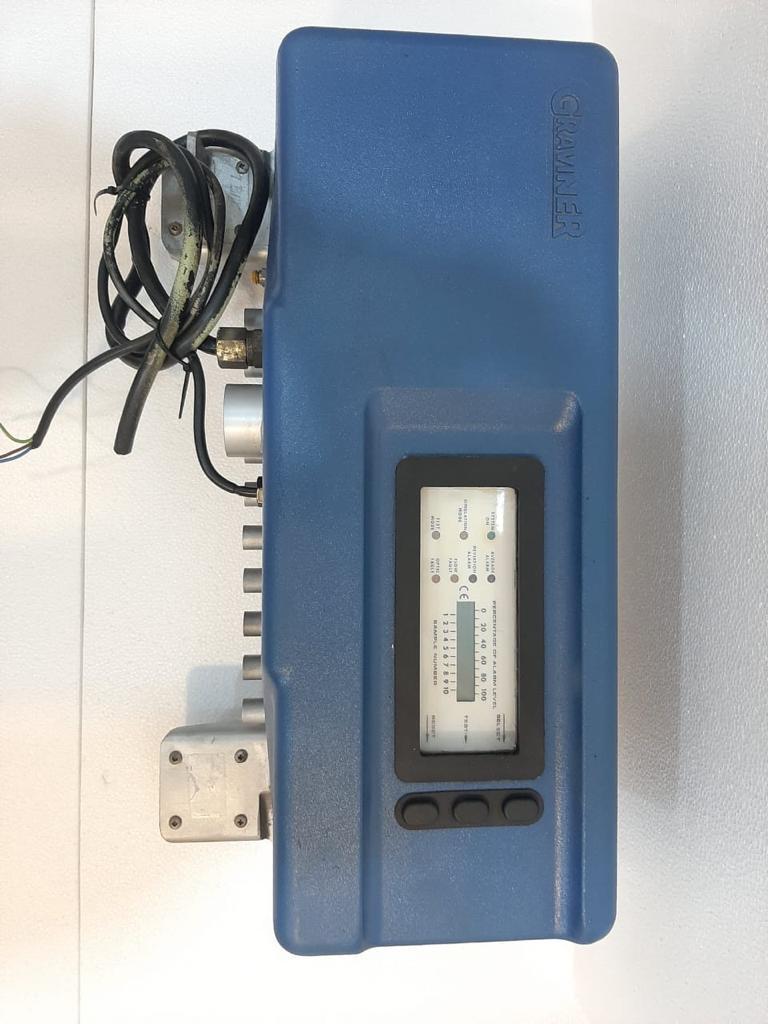

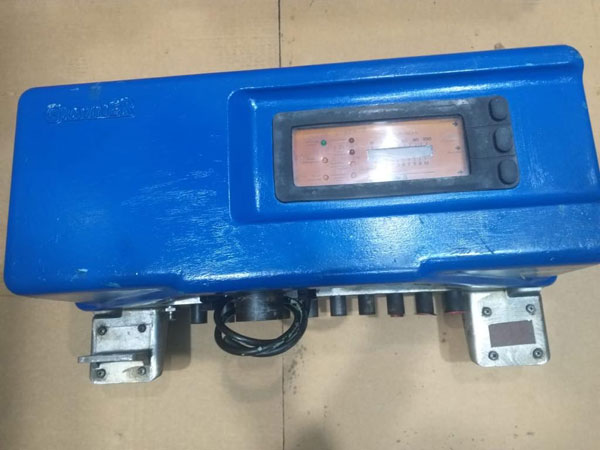

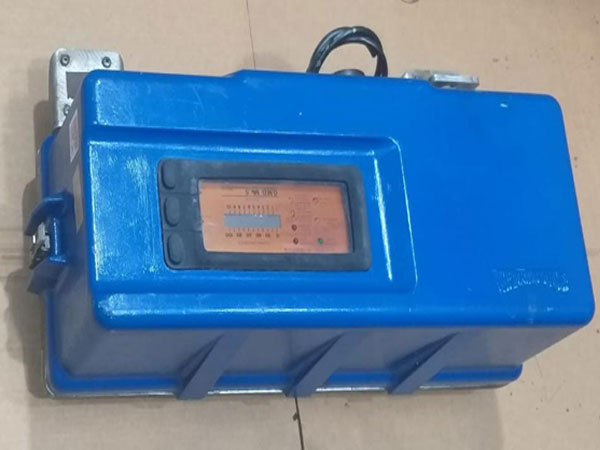

MK5 Unit Gallery

💡 Upgrade Available: Thames Diesel and our team can supply complete MK7 systems and technical information to upgrade your old Graviner MK5 or MK6 unit. Advise details of your existing system including engine make, model, number of sampling points and cable lengths for each detector — we will send recommendations.

Spare Parts for Kidde Graviner MK5 Oil Mist Detector

Part Number	Description
18272-024	Nylon pipe ∅ 6 mm (per metre)
21171-803	Washer — fibre
21173-006	Washer — plain
21173-007	Washer — plain
21173-008	Washer — M5
21175-065	Washer — spring
21258-026	Self tapping screw
21758-002	Nylon Fixing Screw
21833-025	Screw M3 x 12
21883-004	Full nut M3
21886-331	Nut Nyloc
24124-201	Pressure regulator & filter assy
24124-202	Air filter element
24124-204	Stud coupling
25124-317	O-ring (solenoid)
25126-014	O-ring (lamp)
25126-040	O-ring (air chamber)
25466-025	Elbow 1/8
25466-026	Elbow 1/4
25466-101	Tee coupling
25466-902	Female adaptor
25812-040	Flexible exhaust hose
27411-408	1 Amp fuse (anti surge)
27415-003	Fuse holder
27480-K008	Solid state relay
27489-073	Relay MK5
27600-H11	Select/test switch (replaces 27466-491)
28781-002	Display unit (IC14)
31111-804	Window
31571-102	Solenoid cap (31571-101)
33111-103	Solenoid button
33813-402	Air chamber
38511-729	Cover window retainer seal
38531-720	Buffer
38531-761	Fan boot
39832-704	Power supply select card
44211-115	Toroid assy
45625-130	Air valve assy
45625-131	Pressure switch
45625-155	Sample valve assy
45626-112	Photocell assy
45626-113	Power supply assy
45626-120	Lamp assy
53569-110	MK5 PCB
59811-141	Manual — English
B4112-002	Pressure gauge for air regulator
B7481-951	OMD5 Solenoid kit
D4727-001	Loom C alarm output (replaces 44727-122)
P52100	IC4 (programmed P52100)

MK6 — Current System Since 2000

Kidde Graviner MK6 Oil Mist Detection System

Advanced analogue addressable oil mist detection system. Monitors up to 64 detector heads across 8 engines. Pipe-free installation with minimal cabling. Each detector head is a stand-alone device monitoring a single crankspace. In service on thousands of vessels worldwide.

🔌

64 Detector Heads

Monitors up to 64 individual crankspace detectors across 8 engines from a single control unit.

⚡

1.2s Scan Rate

Scans all 64 detectors in under 1.2 seconds — rapid response to rising oil mist levels.

📡

Digital Transmission

Converts oil mist density to digital signal via data cable. No sample pipes required.

🛠️

Hot-Swap Detectors

Faulty detector head replaceable in minutes without shutting down the entire system.

👉

Optical Scatter

Uses light scatter not obscuration — enabling very small, rugged engine-mounted detectors.

✅

All Class Societies

Approved by all major international classification societies. Providing protection since 2000.

The Graviner MK6 uses optical sensing based on light scatter rather than obscuration — enabling very small, rugged detectors that are engine-mounted using standard oil mist detector ports. Each detector has its own means of sample acquisition, completely eliminating the need for sample pipes.

The MK6 retains the long-established differential measuring system, providing high sensitivity while maintaining maximum false alarm rejection. Multiple internal light sources ensure a single component failure will not cause the loss of a detector.

The control unit can be configured to monitor from 1 to 8 engines. Detector addresses are identified and associated with the appropriate engine. Deviation levels, average alarm levels and alarm output requirements are all set from the control unit. The large LCD display provides real-time access to detector signals and indicates average oil mist levels for each engine.

Parameter	MK6 Specification
Detection Method	Optical light scatter (differential measuring)
Max Detector Heads	64 (8 per engine)
Max Engines	8 engines per control unit
Scan Rate	< 1.2 seconds for 64 detectors
Alarm Range	Detects 0.3–1.3 mg/L average crankspace density
Lower Explosion Limit	30–50 mg/L (oil type dependent)
Power Supply	24V DC
Sample Pipes Required	No — pipe-free installation
Introduction Year	2000
Classification Approval	All major classification societies

Spare Parts for Kidde Graviner MK6 Oil Mist Detector

Part Number	Description
13455-D033	Door seal
21888-K043	Gland 25 mm (metal)
27411-K001	Fuse, 4 Amp., 20 mm, slow blow
35100-K187	Bezel
39155-K047	Function Key Membrane (Rev 2.0)
39155-K048	Status display Membrane (Rev 2.0)
43682-K032	Cable Harness
43682-K037	Loom
43682-K108	Cable assy 2.5 m — straight connector
43682-K108-00	Cable assy 5.0 m — straight connector
43682-K108-01	Cable assy 7.5 m — straight connector
43682-K108-02	Cable assy 10.0 m — straight connector
43682-K108-04	Cable assy 15.0 m — straight connector
43682-K108-06	Cable assy 20.0 m — straight connector
43682-K108-08	Cable assy 25.0 m — straight connector
43682-K109	Cable assy 2.5 m — 90° connector
43682-K109-02	Cable assy 10.0 m — 90° connector
43682-K109-04	Cable assy 15.0 m — 90° connector
43682-K109-06	Cable assy 20.0 m — 90° connector
43682-K109-08	Cable assy 25.0 m — 90° connector
43782-K120	Control unit LCD display
43782-K178	Main processor board with LCD
44782-K071-02	Main processor board new version MK6
44782-K098-01	8 engine status display board
44782-K102-02	Status display board
44782-K182	EEPROM
44782-K183X	Interface board (replaces 44782-K085)
44782-K184	Junction box board (replaces 44782-K117)
53836-K170	Control Unit (Bulkhead Mount)
53836-K206	Control Unit (Flush Mount)
53836-K224-03	Junction box 3 inputs, 2x25mm plastic glands
53836-K224-05	Junction box 5 inputs, 2x25mm plastic glands
53836-K224-08	Junction box 8 inputs, 2x25mm plastic glands
53836-K224-10	Junction box 10 inputs, 2x25mm plastic glands
53836-K224-12	Junction box 12 inputs, 2x25mm plastic glands
D5622-001	Detector head electronics only
D9221-024	Spares kit (straight connector)
D9221-025	Spares kit (90° connector)
E3561-301	Detector head complete
E3561-301-01	Detector (short sample pipe)
MT0021	Download cable
P57100-113	EPROM

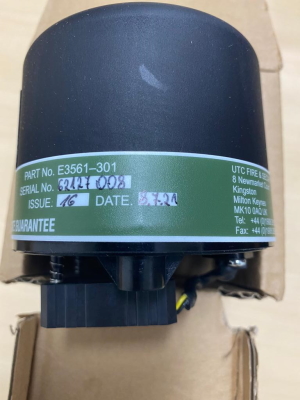

Graviner MK6 Detector Heads — Original New Genuine

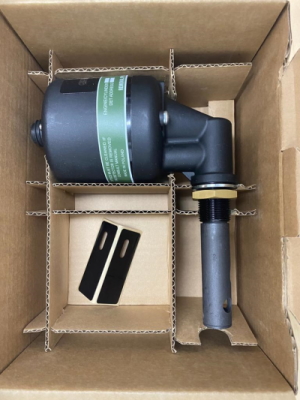

Kidde Graviner MK6 detector head original genuine 1

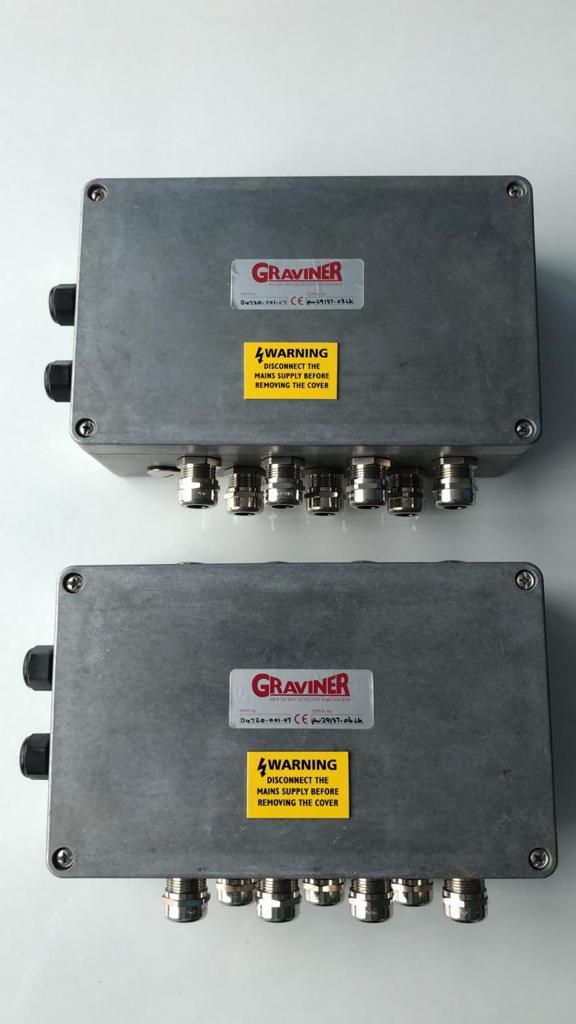

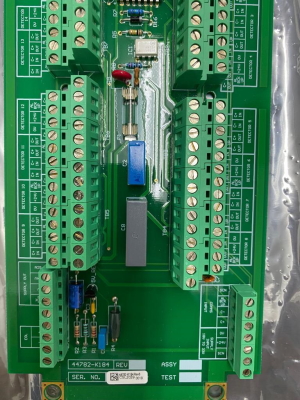

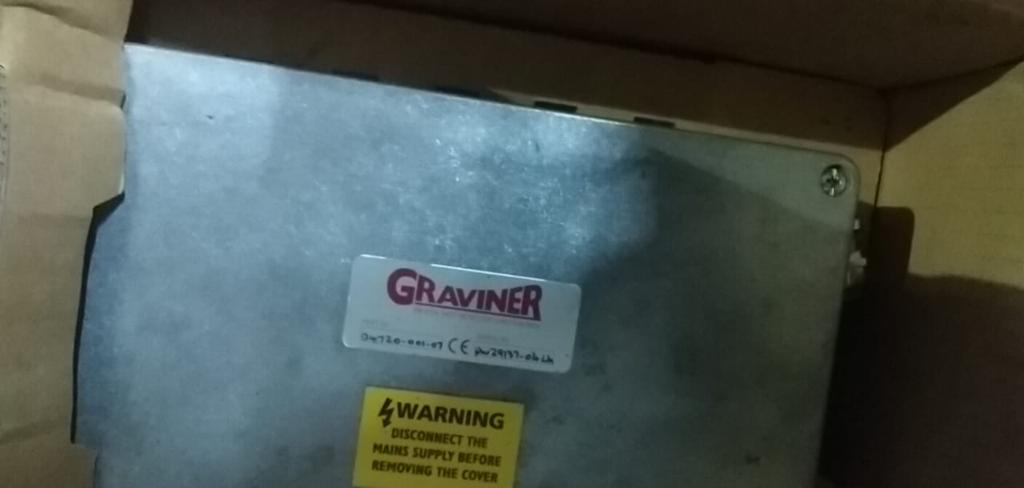

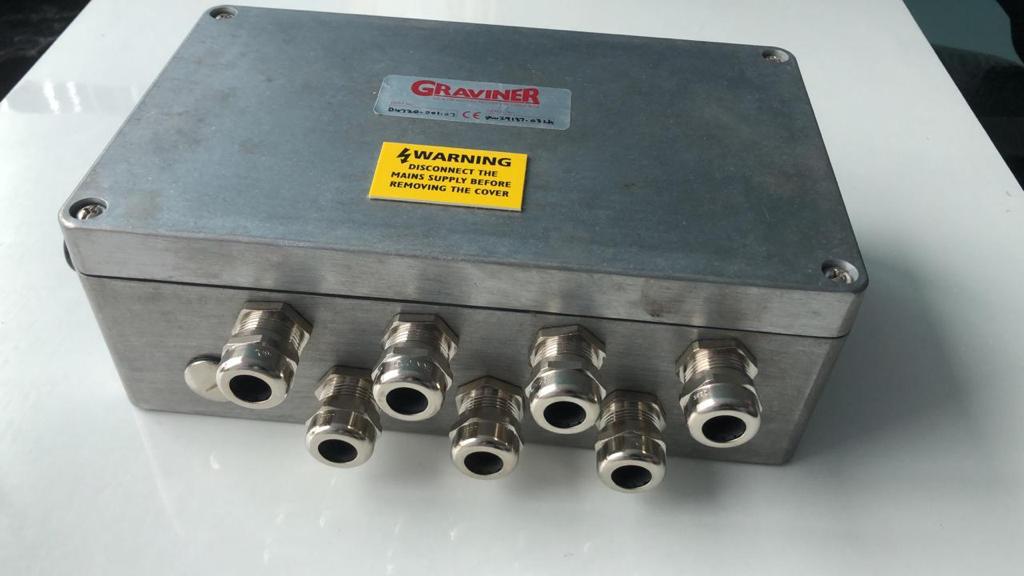

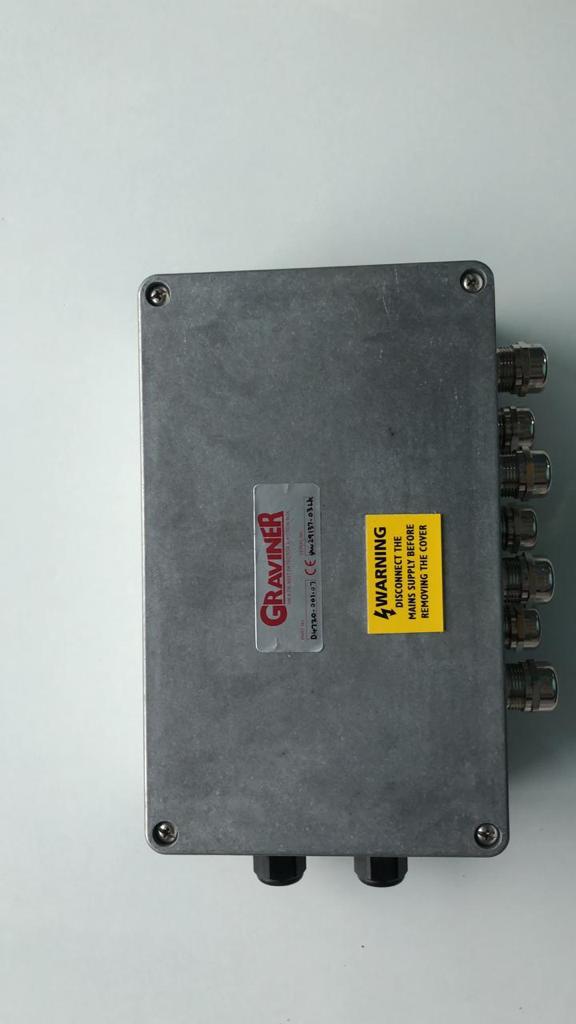

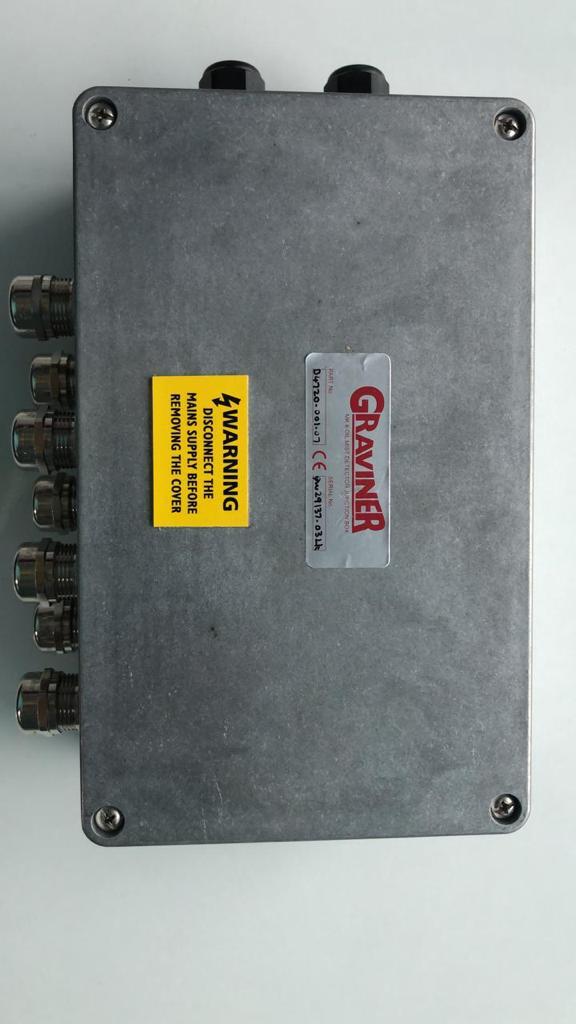

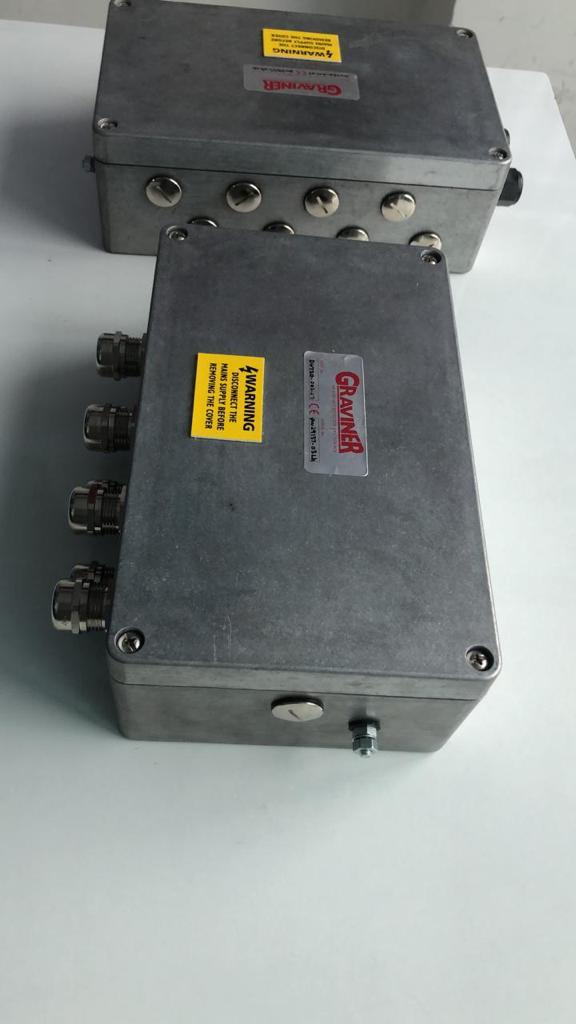

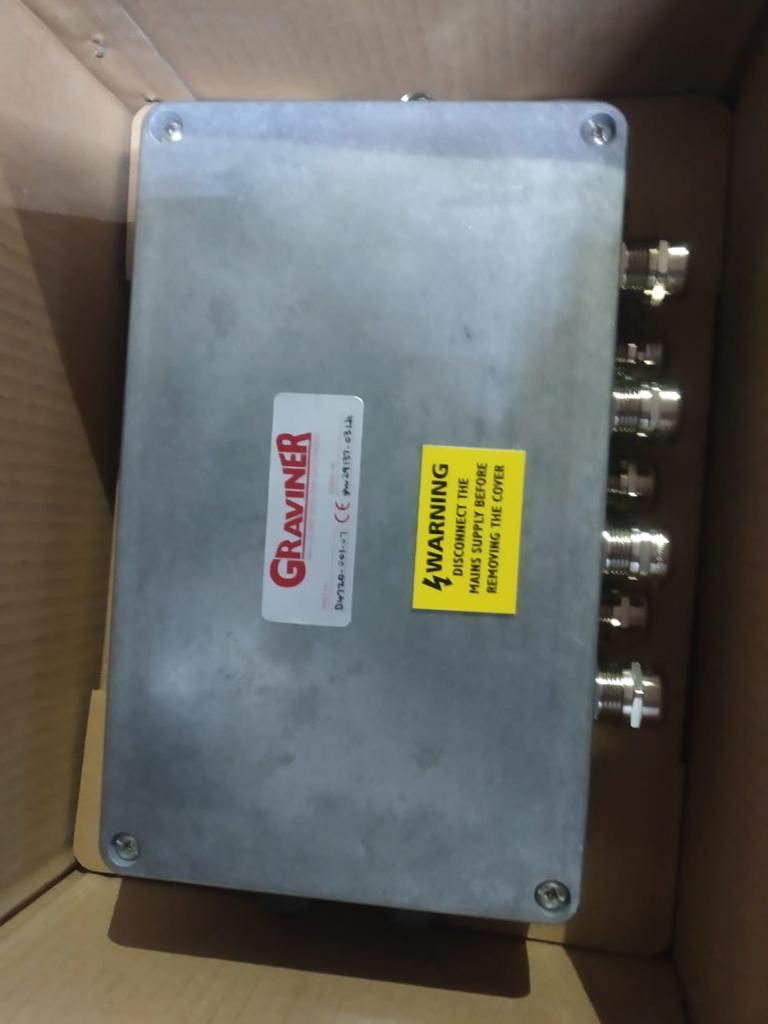

Graviner MK6 Junction Box — Surplus New Stocks

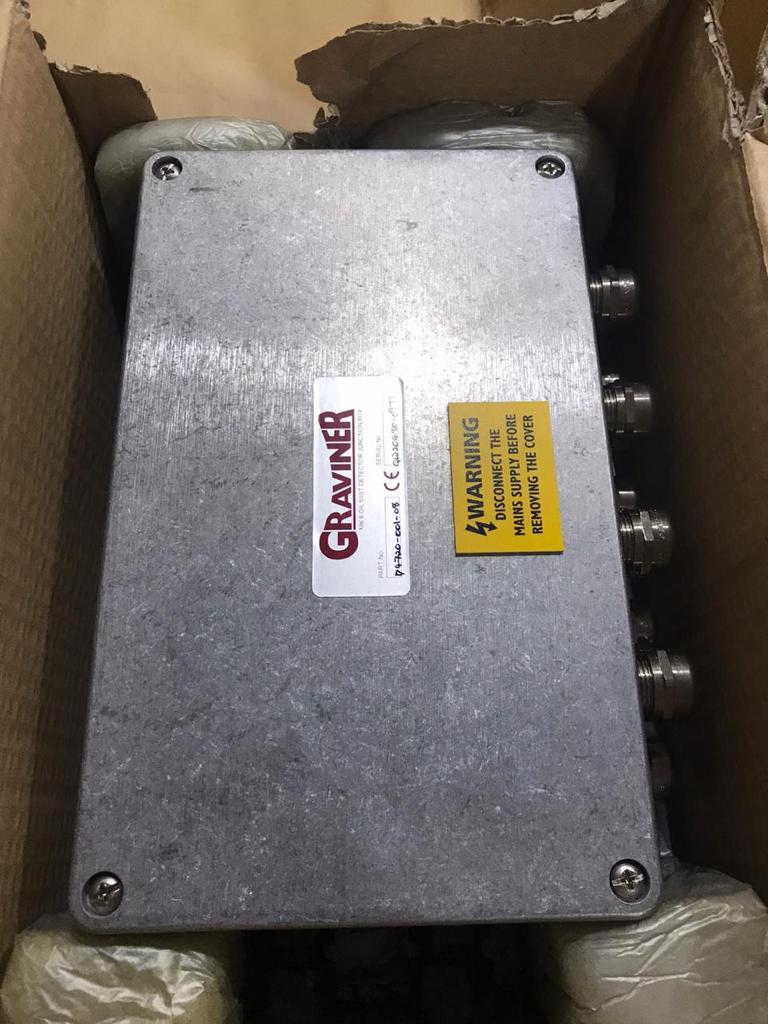

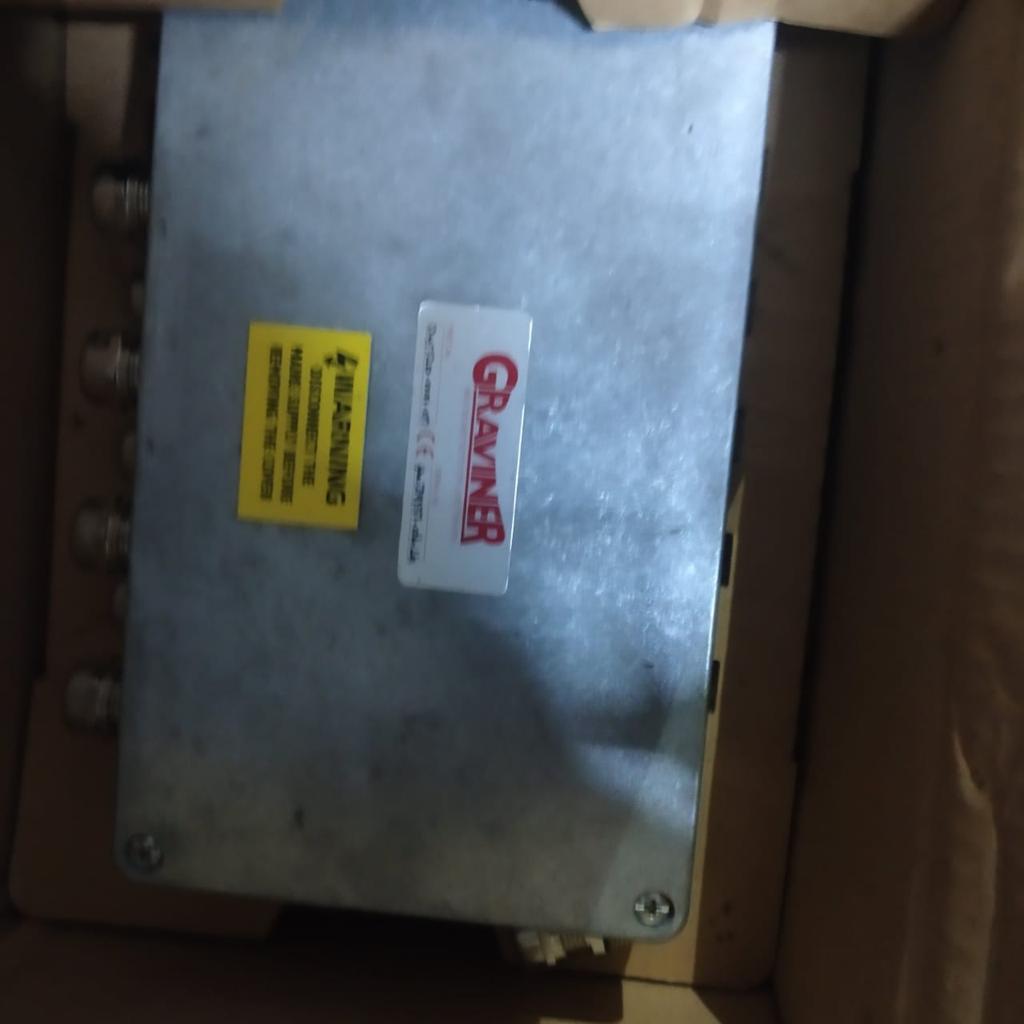

Genuine Original Graviner MK6 Controller Unit (Bulkhead)

Graviner MK6 controller unit bulkhead mount genuine

MK6 Technical Downloads

📄 MK6 & MK7 Detector Head Cleaning & Service Kits 📄 KG6 Fans Technical Note 📄 MK6 OMD Fault-Finding Guide 📄 MK6 System Overview & Fault Finding Guide

MK7 — Latest Generation Since 2012

Kidde Graviner MK7 Oil Mist Detection System

Auto-addressed oil mist detection system with touch screen display. Monitors up to 10 detector heads per control unit on up to 10 control units. Latest generation of the proven Graviner system — recommended upgrade from MK5 and MK6.

📱

Touch Screen Display

Graphical touch screen interface for diagnostics and real-time monitoring from the engine control room.

🔌

Auto-Addressed

Auto-addressed detector heads — simplified commissioning and no manual address assignment required.

⚙️

100 Detectors / 10 Engines

Up to 10 detectors per control unit on up to 10 control units — flexible for large engine installations.

🔍

Improved Monitoring

Enhanced contamination monitoring within the detector, repositioned test LED for easier cleaning.

🔌

Pre-Terminated Cables

Pre-terminated cables reduce installation and maintenance time compared to MK6.

✅

MK6 Base Compatible

Utilizes the MK6 detector base and sample pipes — easy upgrade path without engine modifications.

The Graviner MK7 is an auto-addressed oil mist detection system. Each engine-mounted control unit can be configured to monitor 1 to 10 detectors, each monitoring a single crankspace. Alarm levels and alarm output requirements are all set from the control unit or the optional display unit.

The touch screen display shows on demand the signal from each detector and indicates the oil mist level for each engine. In the event of an alarm, the display immediately shows the oil mist signals for the relevant engine. Each detector on an engine can be displayed on demand and automatically under alarm conditions.

Parameter	MK7 Specification
System Type	Auto-addressed
Max Detectors per CU	10
Max Control Units	10
Max Total Detectors	100
Display	Touch screen (optional display unit)
Base Compatibility	Uses MK6 detector base and sample pipes
Introduction Year	2012
Classification Approval	All major classification societies
Recommended Upgrade For	MK5 and MK6 obsolete/ageing systems

💡 Upgrade from MK5 / MK6: The MK7 utilizes the existing MK6 detector base and sample pipes — making it a straightforward upgrade without modifying the engine. Contact us with your existing system details for an upgrade recommendation and pricing.

Spare Parts for Kidde Graviner MK7 Oil Mist Detector

Part Number	Description
17100-H06	Wick 150mm
21888-K073	Connector Push in (B5465-307)
53569-K005	Fan, Micronel type F41LP-005KK-9 (2 screw type)
A7311-001	Wipes wet and dry
A7311-002	Glass Cleaner 500ml
B3721-006	Compression spring
B3741-902	Fan retainer
B6910-217	Foam Buds
B6910-218	Air Duster
B6910-219	4mm Hexagonal key
C1413-801	Fan connector seal
C1513-802	Base moulding O-ring
D5622-005-02	Fan, Micronel type F41LP-005KK-9 (1 screw type)
D5622-101	Base unit sub-assy
D9131-002	Pulling tool
D9221-026	Commissioning kit
D9221-027	Service kit
D9221-028	Smoke test oil — 30 ml
D9221-029	Smoke tester

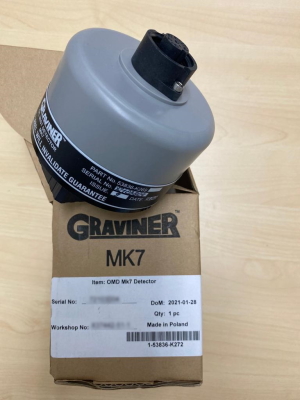

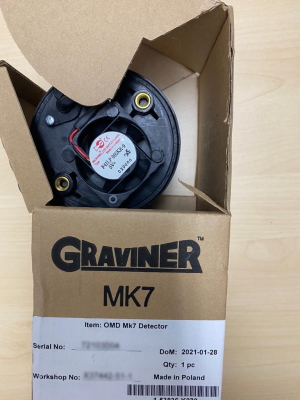

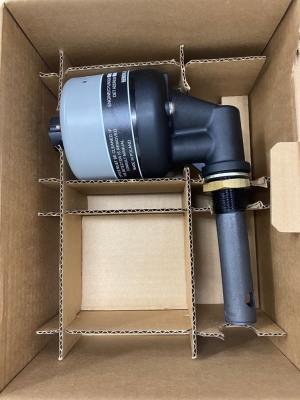

Graviner MK7 Unit Gallery

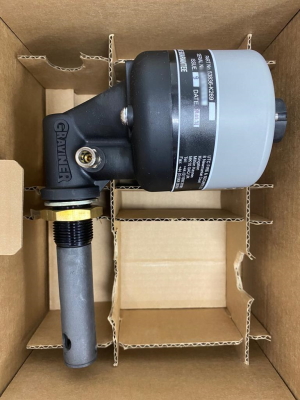

Kidde Graviner MK7 oil mist detector unit view 1
